NS TESTS
Material: Steel Parts
Problem: Lateral Oxide Layer
Solution: Edge rounding combined with the oxide
removal process
NS Máquinas received a
request from a customer with steel parts with a layer of oxide on the lateral
of the metal part. The metal parts had 12mm thickness and 200x200mm
width.
 |
| Metal parts with an oxide layer on the lateral |
The tests were conducted with a DM1100 C – Deburring machine which it is possible to equip with two different types of deburring blocks:
edge rounding blocks and wire blocks for oxide layer removal.
It is possible to use the second blocks (oxide removal) with
parts up to 20mm and ideally up to 16mm for better results. We process with two
different processes:
different processes:
1)
One pass in each side of the parts to remove
oxide layer and edge rounding;
2)
Two passes in each side of the parts to remove
oxide layer;
 |

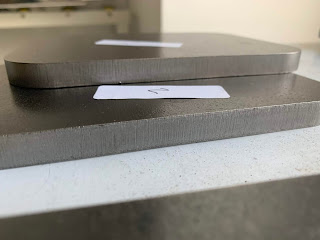

| On top: 1st process; On the bottom: 2nd process. |
The total oxide layer was removed from all the sides of the metal sample. The edge rounding process is a choice for the customer considering that the machine allows both types of blocks. In this case, it was also suggested a double-side machine (DM1100 2C - Double-Sided Edge Rounding Machine) to decrease the processing time by 50%.
If you need to book your own deburring, edge rounding or oxide removal tests with us, please contact us through marketing@nsmaquinas.pt or through our contact page: https://nsmaquinas.com/contacts/
