Plasma Parts - Deburring and Edge Rounding - DM660 ZC


One of the most known cutting processes for metal sheets is plasma cutting. This process uses a high velocity jet of ionized gas heating the workpiece and cutting by melting the material. Despite being a very economical and fast process, for thick metal sheets it has a big downside: big burrs.

Since the metal is melted, the top of the part has a clean cut but on the other hand the bottom remain with the burrs of the melted material. These burrs are, in most cases, undesired because changes the piece sizes and specifications. In order to be used on the final process, companies need to remove the burrs by implementing a deburring and edge rounding solution.

NS Máquinas developed the DM1100 ZC - Deburring and Edge Rounding Machine specially to remove medium and big burrs and perform the edge rounding in the same process. In order to do this, this machine, includes a deburring station with an abrasive belt and a large contact roller. Also, it has a double cross belt station with two belts running in opposite directions enabling the edge rounding.

The following sample is an example of the machine capacity:

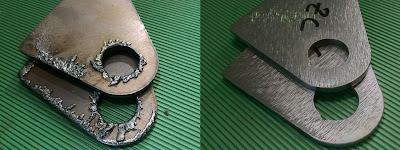

Before and after deburring and edge rounding process

This piece has severe burrs on the bottom part and the costumer needed not only to remove it as well edge round and finishes the piece. After the deburring station the burrs were totally removed from the bottom surface. Also, giving the flexible cross belt abrasive blocks the edges of the part were soft and round.


For more information please visit our website: www.nsmaquinas.com or contact us at marketing@nsmaquinas.com.
